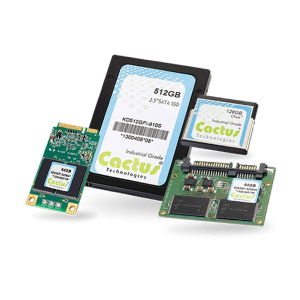

Cactus Technologies, Ltd. Offering Industrial Grade SATA SSD, mSATA, Slim SATA and CFast for Highly Reliable OEM Requirements
Cactus Technologies, Ltd. Industrial Grade SATA SSD, mSATA, Slim SATA and CFast are designed to meet the most demanding OEM application requirements. With all major form factors available, they are able to meet any OEM’s needs.
Sai-Ying Ng commented, “Our broad line of Industrial Grade SATA flash storage devices satisfy the needs of OEM’s requiring high capacity or small form factor while always providing high reliability, BOM Control and long life cycles.”
Industrial Grade 2.5" SATA SSD (Solid State Drive)
The Cactus SLC 2.5” SATA SSD is a drop-in replacement for existing rotating hard disk drives (HDD). Cactus Solid State Drives have same 22-pin SATA connector, form factor and mounting holes as HDD for ease of design. Die cast chassis provides unmatched ruggedness.
- Physical size: 100.5mm x 69.85mm x 9.5mm
- Connector type: 22-pin standard 2.5” SATA connector
Industrial Grade mSATA (Mini-SATA; MO-300)
The Cactus SLC mSATA is a small form factor SATA device used in many embedded OEM systems for industrial applications. It is a small, highly reliable storage device used to store Operating Systems, Applications and other data.
- Physical size: 50.8mm x 29.85mm
- Connector type: 52-pin card edge connector (split into 16-pin & 36-pin sections)
Industrial Grade Slim SATA (Half Slim SATA; MO-297)
The Cactus SLC Slim SATA (aka Half Slim SATA) is another small form factor SATA device used in embedded OEM systems for industrial applications. The Slim SATA uses the same 22-pin SATA connector as 2.5” SATA SSD allowing designers to use existing 2.5” HDD or SSD cabling.
- Physical size: 39.8mm x 54mm
- Connector type: 22-pin standard 2.5” SATA SSD connector
Industrial Grade CFast Card
The Cactus SLC CFast card was defined by the CompactFlash Association (CFA) as a faster alternative to Compact Flash cards. It has been gaining popularity lately in embedded OEM systems for industrial applications. A specific socket is required to use the CFast form factor.
- Physical size: 36.4mm x 42.8mm x 3.3mm
- Connector type: CFast specific 24-pin female connector
